Rotex Insert Flexible Coupling PU GR Elastic Spiders Anti Aging

Name: Rotex Insert Flexible Coupling PU GR Elastic Spiders Anti Aging
Brand: jude
Price: 7.00 USD

China Rotex Insert Flexible Coupling PU GR Elastic Spiders Anti Aging factory

Brand Name : jude

Place of Origin : cangzhou、china

Packaging Details : Rotex flexible coupling insert PU GR Elastic Spiders for Shaft Coupling element
Coupling insert package: Carton or as customer need

Supply Ability : 10000 Piece/Pieces per Month

MOQ : 10 Pieces

Price : $7.00 - $100.00/Pieces

Certification : CE、ISO

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Structure : Jaw / Spider

Flexible or Rigid : Flexible

Standard or Nonstandard : Standard

Material : TPU

Torque range : 22.4NM

Wear tear : <0.05cm3/1.61km

Hardness : 92A±2°

Temperature : -40~100℃

Standard : GB/T5272-85

Coupling insert material : PU

Size : Customized and Standard Size

Color : RED OR Custom Requirement

Type : GS GR MT HRC H and Nonstandard

Product name : Rotex flexible coupling insert PU GR Elastic Spiders

Port : Tianjin

Contact Now

Rotex flexible coupling insert PU GR Elastic Spiders for Shaft Coupling element

Product Description

Rotex Gr xl star padmain feature:

1. Polyurethane elastomer is restricted by convex claw blocks, which can avoid internal deformation caused by impact and external deformation caused by centrifugal force.

2. The large concave surface of the protruding claw makes the surface pressure on the involute tooth very small.

3. Even if the tooth is overloaded, the tooth will not be worn or deformed.

4. It can well compensate various displacements between the two drive shafts, and it is widely used.

PU Size	48mm to 380mm or according to customer's requirements
Temperature	-40~+100°C
Colors	Red or according to customer
Advantage	1.Good sealing and damping. 2.Water resistance. 3.Anti-aging. 4.Anti-ozone. 5.Oil-resistant 6.Pressure resistant. 7.High and low temperature resistant.
Sample lead time	5 days usually
Delivery time	15~30 working days

model	specification
model	Outer diameter (D)	Inner hole diameter (D)	Thickness (n)	Thickness (n)	Spider
GR19	40	18	14.5	12	6
GR24	54	26	15.2	14	8
GR28	65	30	19	15	8
GR38	80	38	22	18	8
GR42	95	46	24	20	8
GR48	104	51	25.5	20.5	8
GR55	120	60	27	22	8
GR65	135	68	32	26	8
GR75	161	81	37	30	10
GR90	199	100	42	34	10
GR100	224	111		38	10

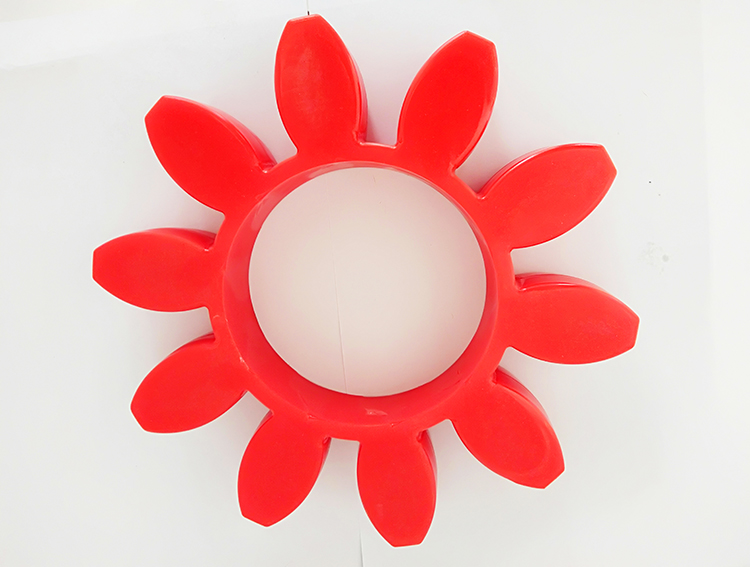

products images
